Soot and grease remover
For charcoal grills, wood-fired rotisseries for chickens, wood-fired ovens for bakeries, wood and biomass boilers

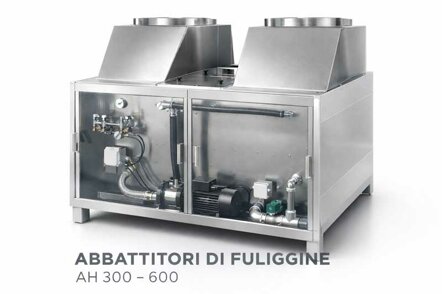

AH 400
AH 400 Soot Scrubber – Power, Efficiency & Advanced Technology 🔥💨
The AH 400 model is designed for maximum combustion fume purification, effectively eliminating soot, grease, and carbon residues. Ideal for those seeking a powerful, sustainable, and easy-to-manage solution.
Where Does It Make a Difference? 🏭🌱
Perfect for systems with airflows up to 5000 m³/h, it is ideal for:
✔ Charcoal grills and wood-fired rotisseries for poultry 🍗
✔ Wood-fired ovens for bakeries 🍞🔥
✔ Biomass boilers and other combustion systems with carbon residues 🌿
Advanced Washing Technology 💧
🚀 Double Plus Enterprise Wash – An innovative system ensuring high-efficiency water misting, capturing up to 95% of impurities.
♻ Wash water can be discharged directly into the sewage system without complications.
Cleaner Air, Reduced Odors 🌬️
✅ Saturated steam exhaust air, free of soot and suspended impurities.
✅ Operates at around 50°C, ensuring safe dispersion.
✅ Reduces odors by up to 70%, improving air quality.
Technical Features ⚙️
✔ Smart Automation – Fully automated operation with water recirculation 🔄
✔ Continuous Monitoring – Integrated thermometer and pressure gauges for precise control 📊
✔ Easy Cleaning – Built-in faucet and hose for fast and efficient maintenance 🚿
✔ Premium Materials – Fully stainless steel construction, including on-off drain valve 🔩
💡 A one-of-a-kind system, engineered for maximum efficiency and long-lasting performance.
📞 Contact us for more details or a customized quote!
IMQ certified product: NR. IMQ 242

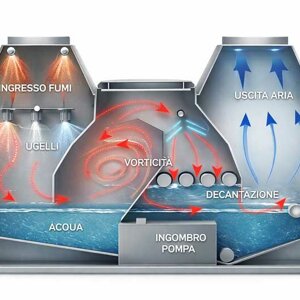

Our soot scrubbers use double washing technology, from the Enterprise category, plus the rollé system (new 2018).
Smoke, grease, and soot purification system.
Machine suitable for charcoal or open flame grills with air flow up to 4000-5000 m³/h.
NOISE LEVEL
The A-weighted sound emission level.
Measured at 1 meter from the machine surface and 1.6 meters above the ground, does not exceed 70 dB(A).
Dimensions
Width 1,350 mm
Depth 1,140 mm
Height 760 mm
Empty weight 130 kg
Water content 270 lt.
Operating weight 400 kg
Smoke inlet and outlet Ø 400 mm female
Air flow rate 1,300 m³/h (air inlet speed 3.7 m/s)
Air volume with Extractor: 5,000 m³/h (extractor power up to 3 kw)
ETC CM-16 Pump
Electric power of the pump 1.35 kw
Water consumption: 270 liters per day plus the water consumed for evaporation.
Constructed in stainless steel 304, thickness 15/10
Package dimensions and weight
Width 140 cm
Depth 125 cm
Height H 100 cm
WEIGHT: 150 kg
AH400 – The soot scrubber others can only dream of.
