- Soot cleaning machines for wood-fired ovens
- Soot cleaning machines for electric ovens
Stainless steel
aspiration Fans
based on water
for Soot cleaning machines
Stainless steel fan & aspiration units with medium flow rates and from medium to high pressures.
The aspirator is made from 304 stainless steel; B5 rotation LG.
Thickness of the bases is 20/10 polished stainless steel 304, the structure is welded and is completely watertight.
Air flow rate is 600 m³/h with 82 H2/o up to 11.000 m³/h
with a final pressure being 64 H2/o.
Engine: of 2800 g/m, power is 230 V - 380 V.
The input’s external Ø is suitable for connection with round flue pipes. The output’s internal Ø is suitable for connection with round flue pipes.
NEWS: The aspirator has a ½ " welded connection for the condensation drainage.
Data Sheet
User Manual

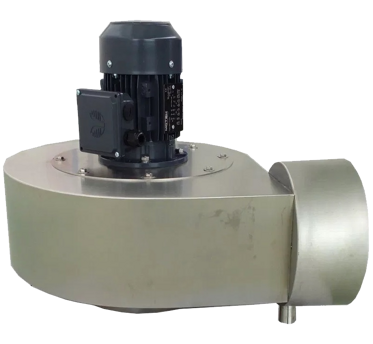

Spiral fan in welded 304 stainless steel body; built specifically for use with humid air, it has a monobloc watertight case and outlet condensate discharge.
It must be used with the motor placed at the top, on a special bracket.
Single 230 - Three-phase 230/380
Models

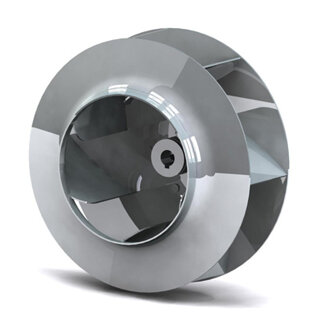

code. STAINLESS steel.4.EBR 250
Stainless steel fans with medium flow rates and medium-high prevalence.
Suction unit in 304 stainless steel in B5, LG rotation.
Base thickness 20/10
Satin stainless steel 304, welded with tin tig throughout the casing.
Airflow 600 m³/h, with 82 H2/o up to 1.100 m³/h
with final prevalence 64 H2/o
Engine 2800 g/m; Power 0.37 kW, 230 / volt - 380 volts
Entrance with external Ø 248.00 suitable for connection with round flues.
Exit with Ø 203 internal suitable for connection with round flues.
NEWS
The aspirator has a 1⁄2 ”connection welded to discharge condensate.
Catalog
Code. STAINLESS steel.4.EBR 280
Code. STAINLESS steel.4.EBR 280
Stainless steel fan aspirator, with medium flow rates and medium-high prevalence.
Suction unit in 304 stainless steel in B5, LG rotation
Base thickness 20/10
Satin 304 stainless steel, welded with tin tig over the whole casing.
Airflow rate from 1500 m³/h with 112 H2/o up to 3500 m³/h with final prevalence 64 H2/o
Engine 2800 g/m, power 1.1 kW, 230 / volt - 380 volts
Entrance with external Ø 298.00.
Suitable for connection with round flues.
Exit with internal Ø 303, suitable for connection with round flues.
NEWS
The aspirator has a 1⁄2 ”connection welded to discharge condensate.
Television program
GreenBiz, with Marco Columbro
aired on SKY
(full bet)
ETC
GROUP
TV
Code. STAINLESS steel.4.EBR 280
Stainless steel fan aspirator, with medium flow rates and medium-high prevalence.
Suction unit in 304 stainless steel in B5, LG rotation
Base thickness 20/10
Satin 304 stainless steel, welded with tin tig over the whole casing.
Airflow rate from 1500 m³/h with 112 H2/o up to 3500 m³/h with final prevalence 64 H2/o
Engine 2800 g/m, power 1.1 kW, 230 / volt - 380 volts
Entrance with external Ø 298.00.
Suitable for connection with round flues.
Exit with internal Ø 303, suitable for connection with round flues.
NEWS
The aspirator has a 1⁄2 ”connection welded to discharge condensate.
